CNC Spiral Paper Tube Machine
>>>> Click to watch video <<<<
 |
 |
|

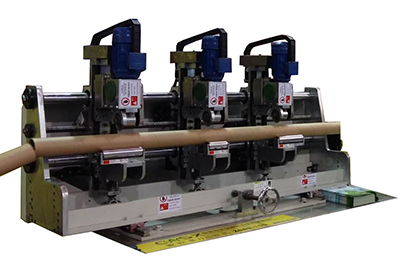

Multi-servo cutter (CNC automatic automatic knife positioning) |
Single servo cutter |
Function description:
1. The mold is fixed by double positioning clips, which is easy to replace. Two heads and four heads are optional
2. The automatic and manual swing angle of the belt spindle box. The automatic swing angle of the host is controlled by the motor, and the swing angle can be switched by pressing the swing angle, which saves the trouble of moving the glue rack and the paper rack when replacing the mold in the traditional way.
3. Ultra-quiet design of transmission part, precise transmission structure, high efficiency and low failure.
4. The main power adopts variable frequency stepless speed regulation, and the cutter adopts servo synchronous tracking and fine cutting.
5, using PLC control system, touch screen operation interface, human-machine interface is easy to learn and easy to operate. Automatic fault diagnosis and early warning feedback on the touch screen.
6. According to production needs, you can set up multiple batches of batch production, and automatically shut down after production is completed.
The main technical parameters:
|
Paper tube production speed m / min |
15-35 M |
|
Maximum paper tube diameter mm |
Φ100mm |
|
Minimum paper tube diameter mm |
Φ15mm |
|
Paper layers / layer |
3-18 layer |
|
Paper tube thickness |
1-8mm |
|
Cutter method |
Hydraulic round knife |
|
Pulley head |
2 or 3 |
|
Swing angle of pulley |
Manual |
|
Host swing angle |
Have |
|
Layers of glue rack |
18 Floor |
|
上胶方式 |
双面上胶 |
|
Operators |
1--2 people |
|
Speed control |
Inverter |
|
Input voltage |
380V （3P） |
|
Monitor rate |
3.7-5.5KW |
|
Inverter |
Mitsubishi |
|
PLC controller |
Mitsubishi |
|
Touch screen |
Mitsubishi |
|
Servo motor |
Mitsubishi |
Out of the machine standard accessories
|
Host |
1station |
|
Receiving table |
1set |
|
Mould |
1 piece less than 100mm |
|
Belt |
1 article |
|
Glossy paper frame |
1 set |
|
Backing paper holder |
1 set |
|
Glue rack |
1 set |
|
Paper rack |
The standard configuration is an ordinary cross upper paper holder. |
|
Toolbox |
1 set |
