CNC Spiral Paper Tube Machine
>>>> Click to watch video <<<<
 |
 |
|

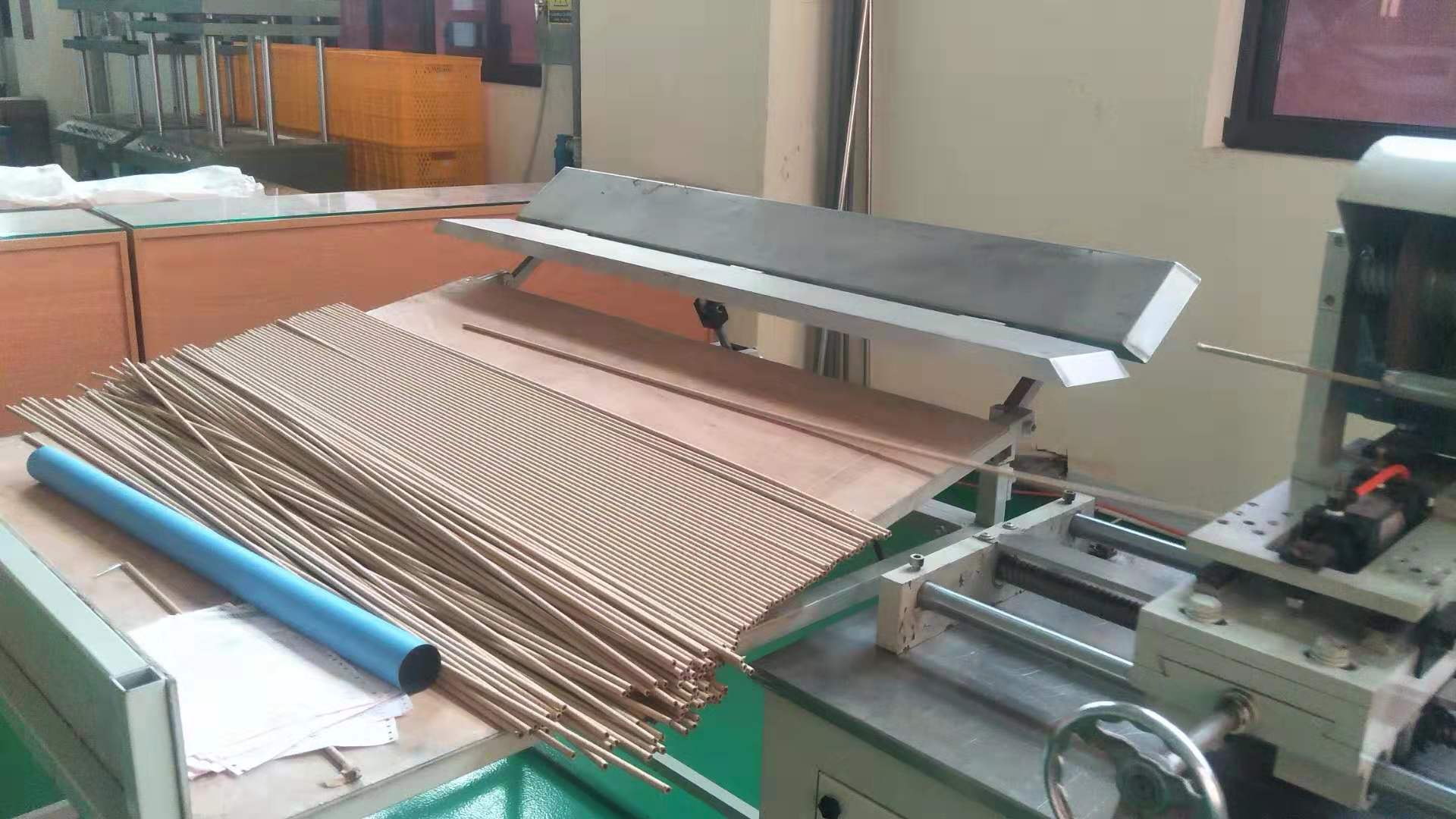

Sample 1 |

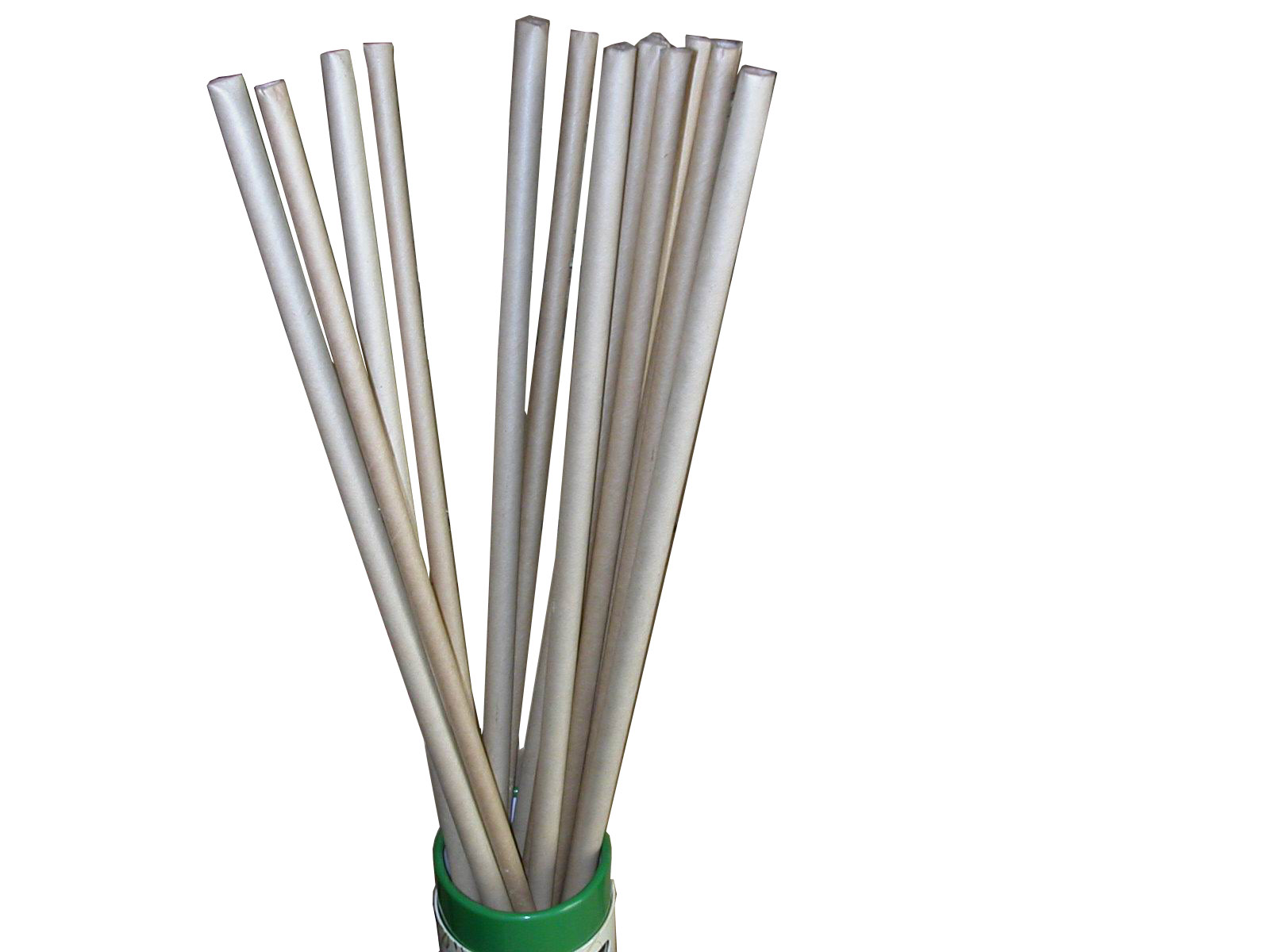

Sample 2 |
Function description:
1. The mold is fixed with double positioning clips, which is easy to replace. Two heads and four heads are optional
2. Automatic / manual swing angle of the belt spindle box. The automatic swing angle of the host is controlled by the motor, and the swing angle can be switched by pressing the swing angle.
3. Ultra-quiet design of transmission part, precise transmission structure, high efficiency and low failure.
4. The main power adopts frequency conversion stepless speed regulation, and the cutter adopts servo synchronous tracking precision cutting.
5, using PLC control system, touch screen operation interface, human-machine interface is easy to learn and easy to operate. Automatic fault diagnosis and early warning feedback on the touch screen.
6. According to the needs of production, multiple batches of batch production can be set, and the machine will automatically stop after production.
The main technical parameters:
|
Paper tube production speed m / min |
0-20M |
|
Maximum paper tube diameter mm |
Φ30mm |
|
Minimum paper tube diametermm |
Φ4mm |
|
Paper layers / layer |
3-8 layer |
|
Paper tube thickness |
1-4mm |
|
Cutter method |
Pneumatic round knife / flying knife |
|
Pulley head |
2 or 3 |
|
Swing angle of pulley |
Manual |
|
Host swing angle |
Have |
|
Layers of glue rack |
8 layer |
|
Glue way |
Single-sided adhesive. |
|
Operators |
1--2 people |
|
Speed control |
Inverter |
|
Input voltage |
380V （3P） |
|
Monitor rate |
3.7-5.5KW |
|
Inverter |
Mitsubishi |
|
PLC controller |
Mitsubishi |
|
Touch screen |
Mitsubishi |
|
Servo motor |
Mitsubishi |
