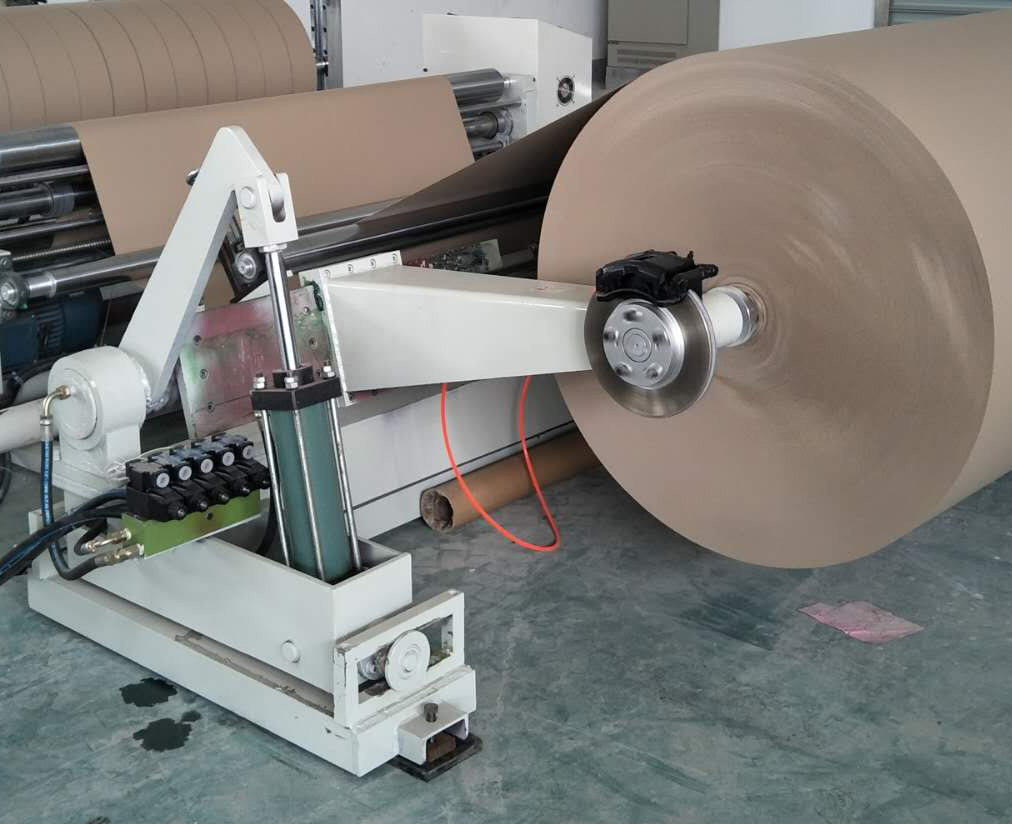

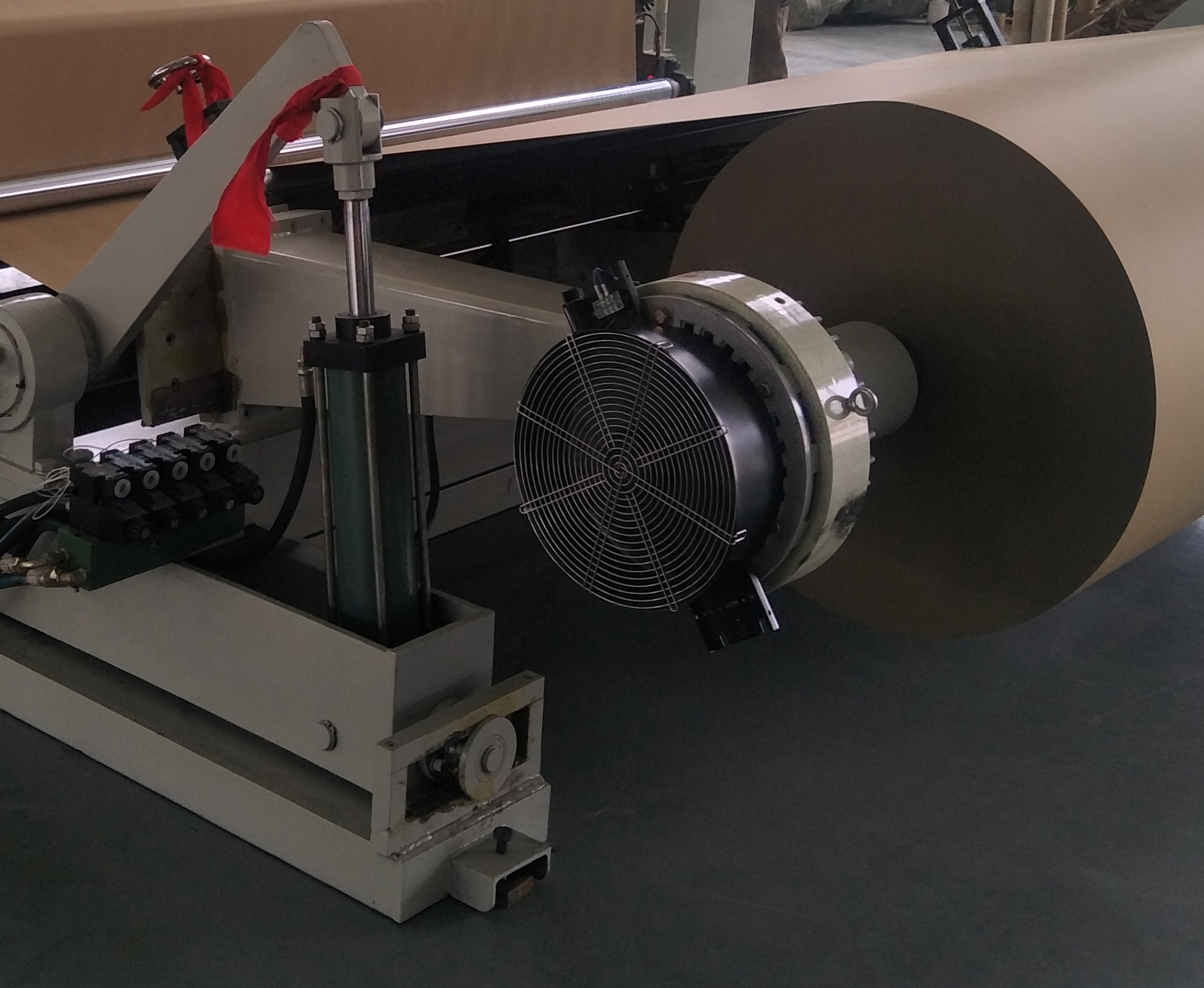

Manual hydraulic brake	Magnetic powder automatic tension control brake

Function description:
FA-2500-150 is a non-standard single-shaft slitting machine
Can be rolled up with a wide width of 2500mm and a winding diameter of φ1300mm
Uniaxial winding, low center of gravity, fast winding speed, large winding diameter and strong winding.
The mechanical structure is longer than the standard model, and the winding speed can reach up to 150 meters per minute.
Remarks: There are two methods of brake control: magnetic powder tension automatic control and manual hydraulic brake. Customers can choose according to actual needs when ordering.

Features:
High-speed CNC base paper slitting machine is used to cut and wind wide webs into various narrow webs suitable for production needs according to different needs during the production process. The slitting process includes two processes: slitting of the raw paper roll and winding of the finished paper roll. This machine is based on the original electronic control system, adding automatic edge alignment, automatic knife positioning and other functions, so that the mechanical performance has reached the desired effect, making the machine more stable at high speeds, smooth winding, simple and convenient operation Safe, reliable and durable. This machine adopts the design of fast roll-up and roll-unload, which is in one step. Loading and unloading can be done automatically by pressing the switch. Stepless speed regulation system is adopted, and the speed of the machine is adjusted by manual stepless speed regulation during use. The operating man-machine interface uses Mitsubishi touch color screen, which can directly input a variety of stripe widths, and is equipped with manual and automatic conversion functions.

   The main technical parameters:

   Electrical control configuration
